Advanced Retort Pyrolysis!

CLIMATAG Retort Biochar Kiln

Transform agricultural residues into fixed-carbon rich biochar and valuable bio-products using our closed-chamber indirect pyrolysis retort system.

2 – 3.5 hrs Per Batch Time
30 – 38% High Biochar Yield
40 / 70 Kg Batch Capacity Options
Get a Quote Technical Specs

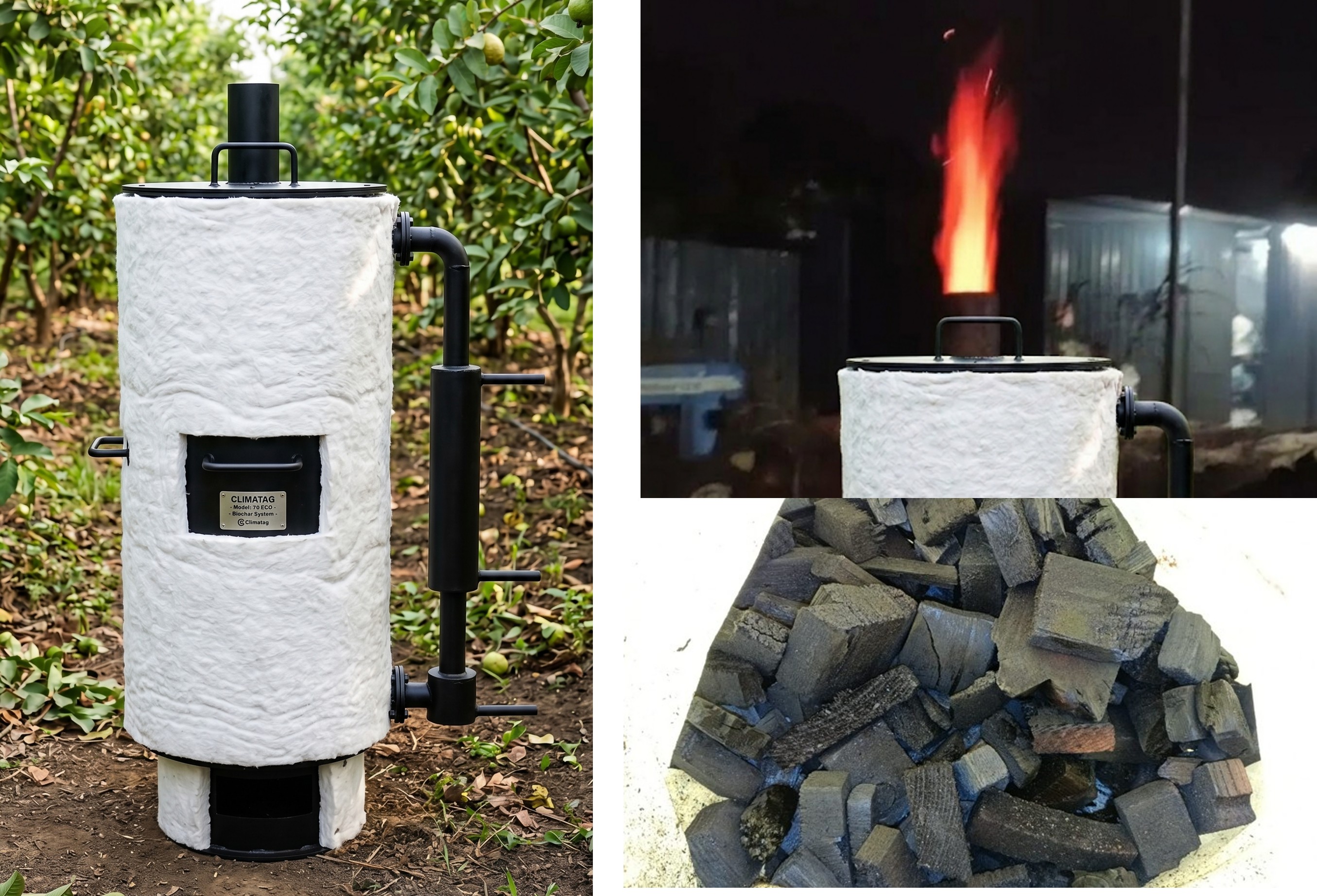

CLIMATAG Retort Biochar Kiln in field

Indirect Pyrolysis

Wood Vinegar Recovery

Syngas Recirculation

Hot Water Benefit

Key Features

Designed For Maximum Value & Zero Emission Carbonization

Why Adopt the CLIMATAG Retort Kiln?

  • Closed sealed retort design prevents direct ash burning of biomass.
  • Syngas recirculation channels gases back into the combustion chamber as fuel.
  • ECO models feature extended water heat-exchangers for pyroligneous acid (wood vinegar) condensation.
  • Provides dual benefits of biostimulant production and hot water generation.
  • Available in standard 40 Kg and heavy-duty 70 Kg batch capacity options.
  • High carbon purity output suitable for soil health, bio-fertilizers, and filtration.

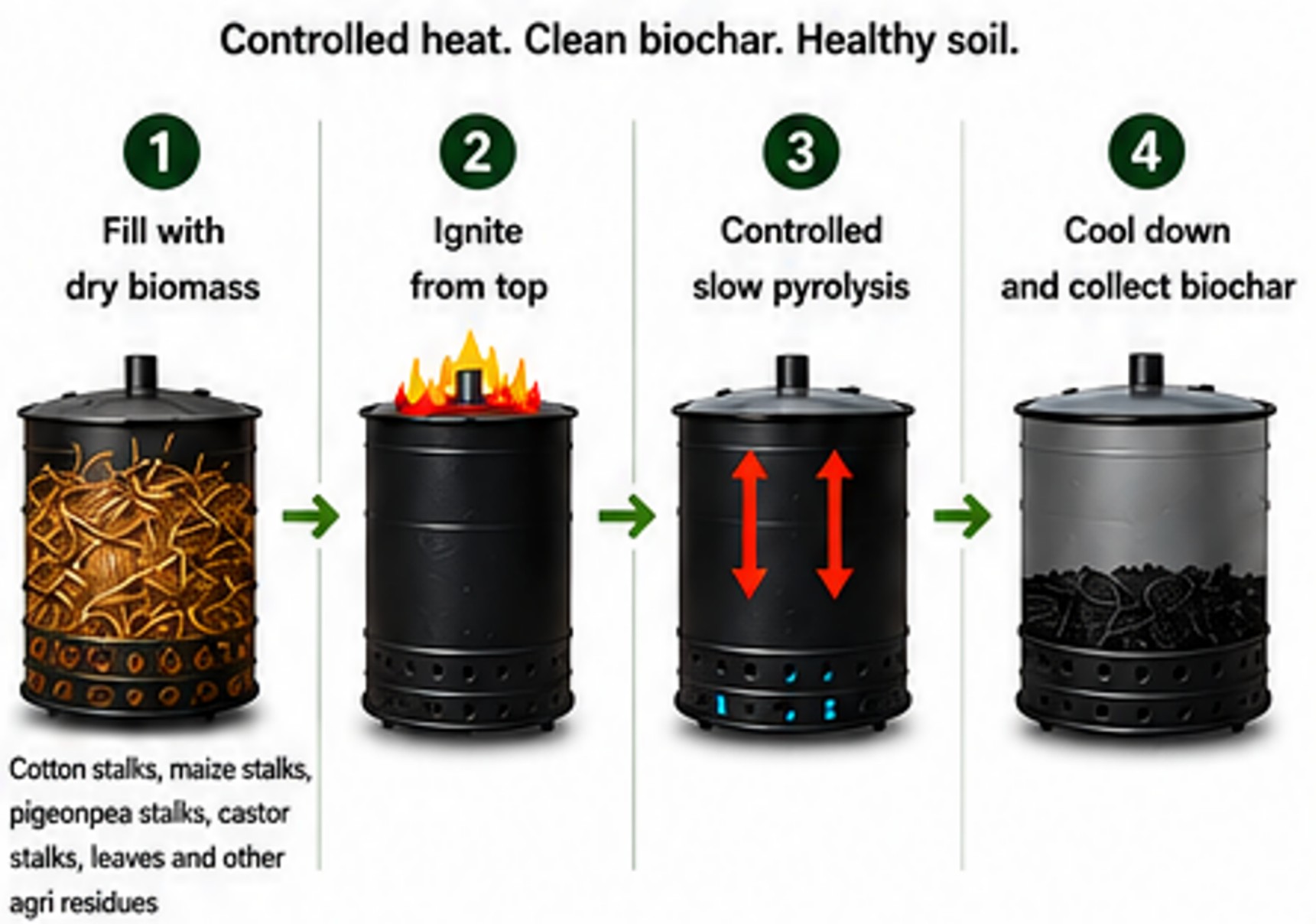

Biochar production from retort kiln technology
Operation Process

How Retort Pyrolysis Works

Indirect heating. Syngas combustion. Byproduct harvesting.

1

Seal Retort Chamber

Load dry biomass into inner retort vessel and seal securely to eliminate oxygen contact.

2

External Thermal Heating

Initiate combustion in outer jacket, indirectly heating inner chamber to thermochemical reaction temps.

3

Syngas & Heat Exchange

Recirculate wood gas to sustain burn; ECO models route condensables through water heat exchangers.

4

Collect Biochar & Byproducts

Harvest premium fixed-carbon biochar along with liquid Wood Vinegar and Hot Water (ECO models).

Engineering

Retort Design & Technical Specifications

Model Variants

BASIC-40, BASIC-70, ECO-40, ECO-70

Batch Capacity

40 Kg & 70 Kg Options

Pyrolysis Mode

Indirect Air-Free Retort System

MOC (Materials)

High Heat-Resistant Mild Steel / SS

Syngas Mechanism

Self-Sustaining Combustion Channel

ECO Heat Exchanger

Multi-Tubular Water-Cooled System

Secondary Products

Wood Vinegar & Hot Water (ECO)

Feedstock Compatibility

Woody biomass, stalks, nutshells, dry residues

Efficiency Data

Retort Conversion Yield Matrix

High Carbon Preservation Efficiency (30% – 38% Mass Yield)

Model Name Biomass Input Capacity Biochar Output (approx.) Wood Vinegar Output Hot Water Co-benefit
BASIC-40 40 kg / batch 12 – 15 kg N/A N/A
ECO-40 40 kg / batch 12 – 15 kg 3 – 5 Liters Available (Integrated)
BASIC-70 70 kg / batch 22 – 26 kg N/A N/A
ECO-70 70 kg / batch 22 – 26 kg 6 – 9 Liters Available (Integrated)
Agronomic Impact

Soil & Yield Benefits of Retort Biochar

  • Higher fixed carbon content (>75%) due to indirect pyrolysis.
  • Retains key mineral nutrients without ash dilution.
  • Wood vinegar acts as a powerful natural pest repellent and biostimulant.
  • Increases soil cation exchange capacity (CEC) significantly.
  • Provides long-term carbon persistence (>100 years in soil).
Climate Benefits

Why Choose CLIMATAG Retort Technology?

  • Virtually smoke-free operation via secondary syngas combustion.
  • Maximizes biomass value through multi-product harvesting (Biochar + Vinegar).
  • Ideal for high-integrity carbon credit generation programs.
  • Sturdy engineering for intensive commercial and community operations.
Market Benchmarks

Retort vs Traditional Pyrolysis

Feature CLIMATAG Retort Kiln (BASIC/ECO) Open Pit / Kon-Tiki Kiln Traditional Direct Kilns
Pyrolysis Mode Indirect / Closed Chamber Direct Flame Top-Lit Direct Combustion
Biochar Carbon Purity High (>75% Fixed Carbon) Moderate (50% – 60%) Low (High Ash Content)
Wood Vinegar Recovery Yes (ECO Models) No No
Emissions Level Very Low (Syngas Reburnt) Moderate to High High Smoke Generation
Hot Water Co-Benefit Yes (ECO Models) No No

*Yield and thermal performance depend on biomass moisture content and operational parameters.

Social Impact

Ideal For CSR & Sustainable Agri-Projects

  • Enables rural micro-enterprises to generate multiple revenue streams (Biochar + Vinegar).
  • Perfect fit for Farmer Producer Organizations (FPOs) and Women Self Help Groups.
  • Directly supports climate-resilient agriculture and soil carbon sequestration goals.
  • Turnkey technology deployment for corporate CSR environment and livelihood programs.

RECOVER ENERGY | BUILD SOIL | ENHANCE YIELD

Upgrade to ClimatAg Retort Technology today. Transform agricultural biomass into valuable biochar and organic liquid bio-inputs.
